JIKONG JK-B5A24S – 5A Balancer BMS with CAN/RS485 for 8S-24S LiFePO4
JIKONG JK-B5A24S – 5A Balancer BMS with CAN/RS485 for 8S-24S LiFePO4
800 in stock
Couldn't load pickup availability
Description:
JIKONG JK-B5A24S Active Balancer
The JIKONG JK-B5A24S is a smart active balancer designed for 8S-24S lithium battery packs. It adopts non-lossy energy transfer technology to equalize cell voltages efficiently during charging, discharging, or idle states, ensuring battery consistency and extending battery life.
Key Specifications:
| Parameter | Value |
|---|---|
| Model | JK-B5A24S |
| Balance Method | Active Balancer (Non-lossy) |
| Balance Current | 5A |
| Battery Strings | 8S-24S |
| Function | BT (Built-in) / APP Support |
| Battery Type | LiFePO4 / Li-ion / LTO |
| Size/mm | 142.5 × 134.3 × 37.8 mm |

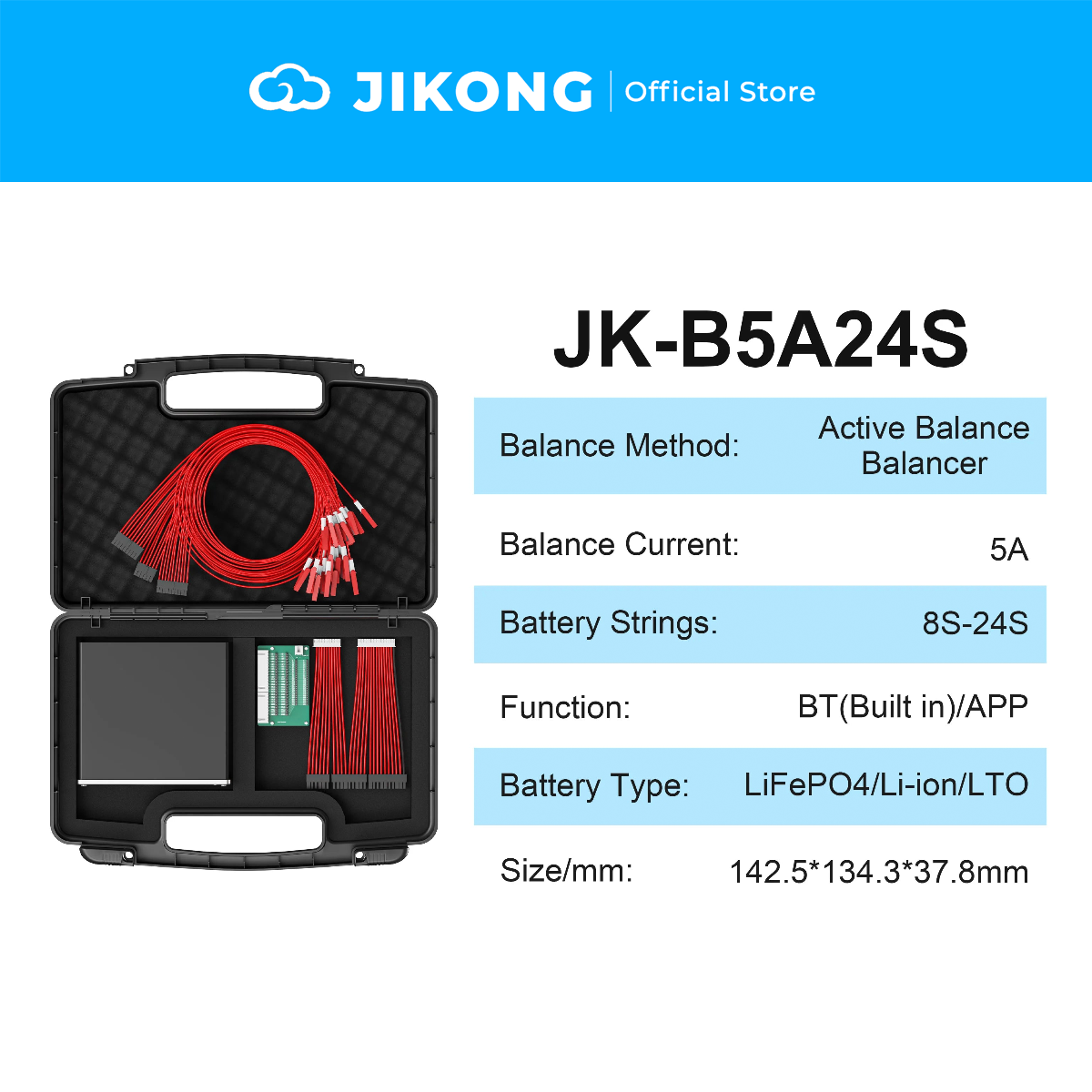

Packing List:
-
JK-B5A24S Active Balancer × 1
-
5A Adapter Cable × 1
-
5A Cable (Alligator Clip) × 3
-
Adapter Board × 1
-
Pack Box (Protective Carrying Case) × 1
What is Active Balancing?
Active balancing transfers energy from cells with higher energy to those with lower energy, achieving voltage balance with minimal energy loss. It operates continuously regardless of charging, discharging, or idle states. Since it involves energy transfer without heat generation, active balancing can use larger currents (commonly 1A–5A) without affecting cooling. It is more suitable for larger capacity battery packs.
