JIKONG JK-PBD6A16S20P-V22-Latest Models – 0.6A Balancer 200A 8S-16S BMS

JIKONG JK-PBD6A16S20P-V22-Latest Models – 0.6A Balancer 200A 8S-16S BMS

The JIKONG JK-PBD6A16S20P-V22 is a smart Battery Management System designed for 8S to 16S lithium battery packs, supporting LiFePO4, Li-ion, and LTO chemistries. It features 0.6A active balancing with ±5mV accuracy, 200A continuous discharge current, and Bluetooth monitoring via iOS and Android app.

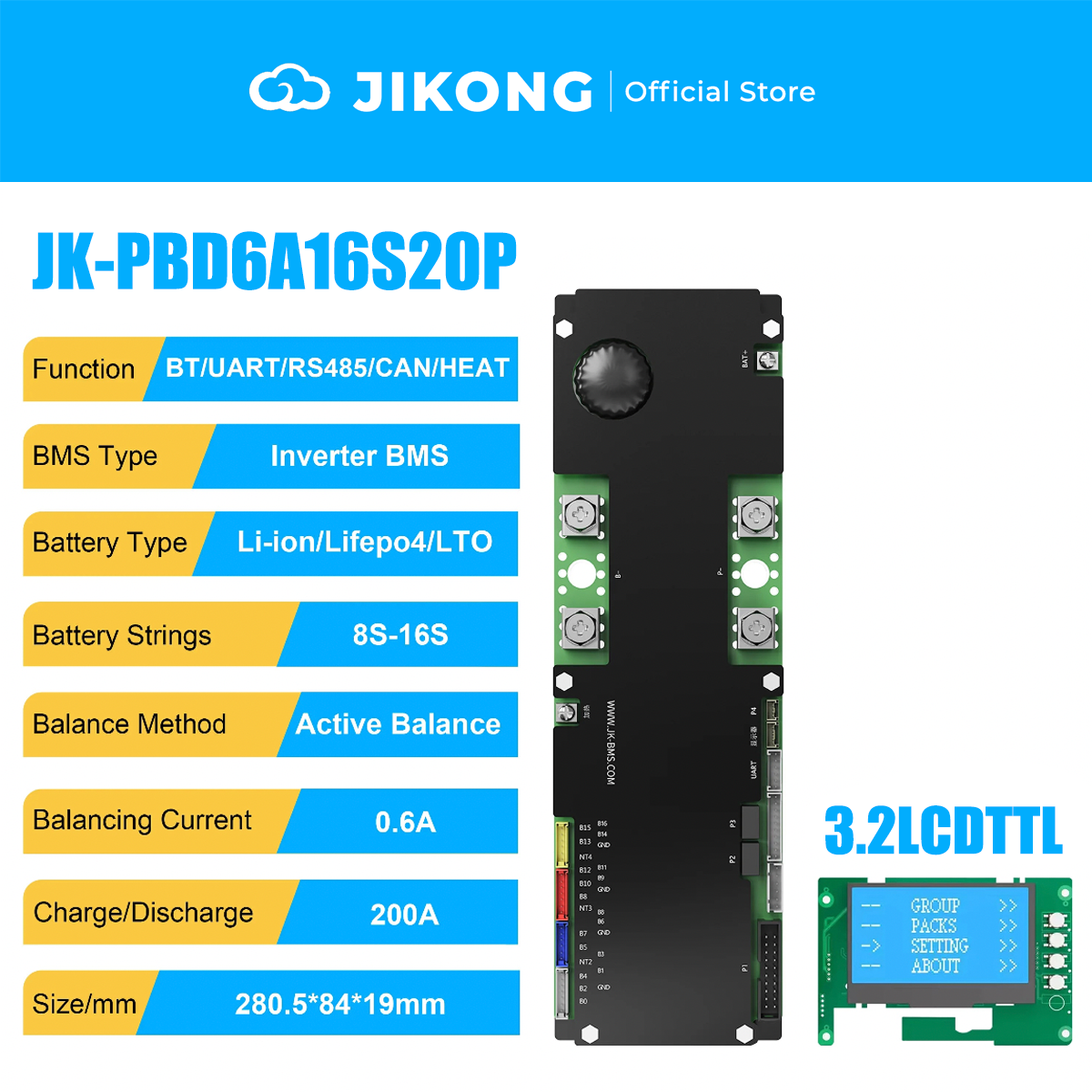

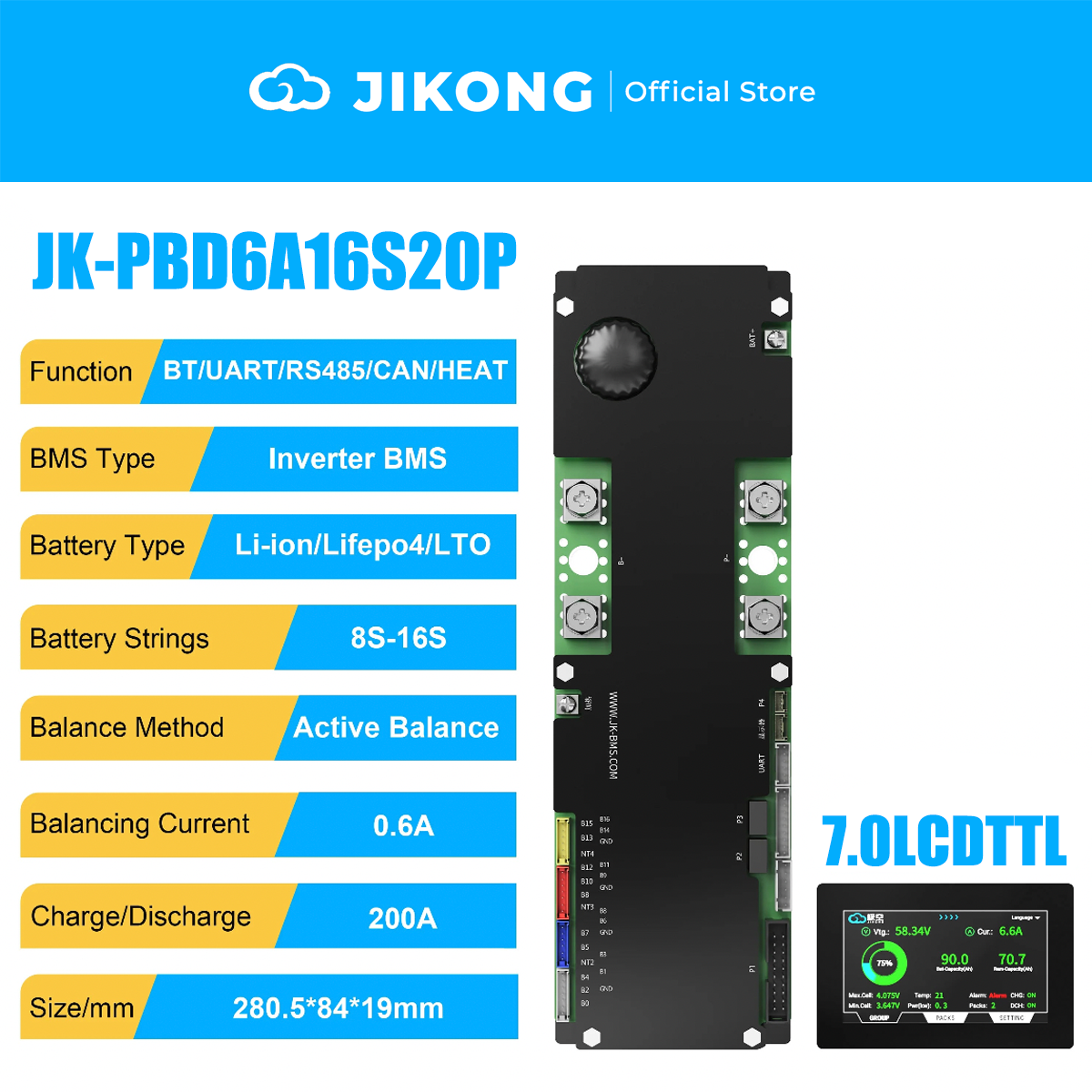

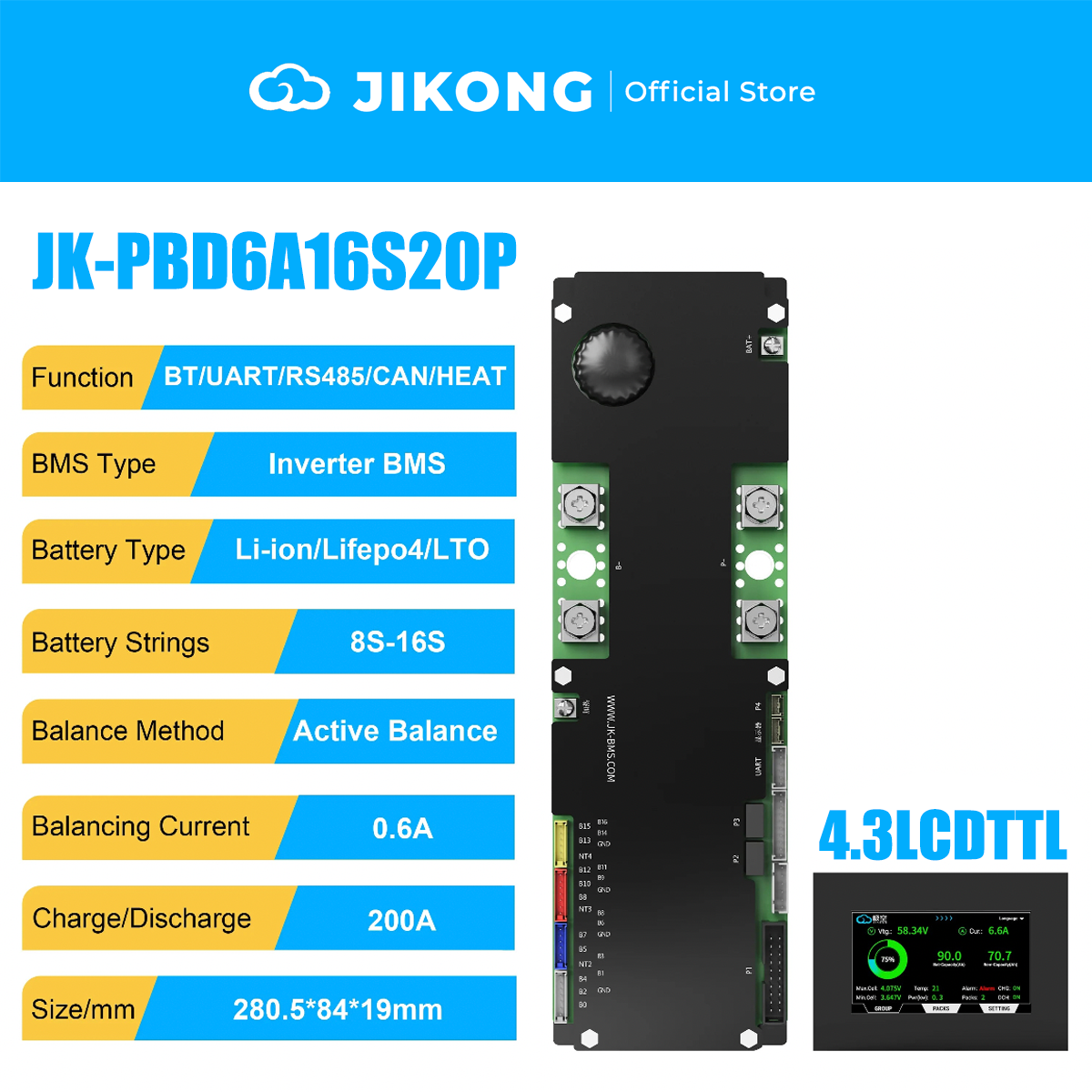

Optional dedicated display screens are available in three sizes: 3.2-inch, 4.3-inch, and 7.0-inch, allowing real-time monitoring of cell voltage, current, and temperature at the battery pack.

Packing List

• ① Packing BOX
• ② BMS

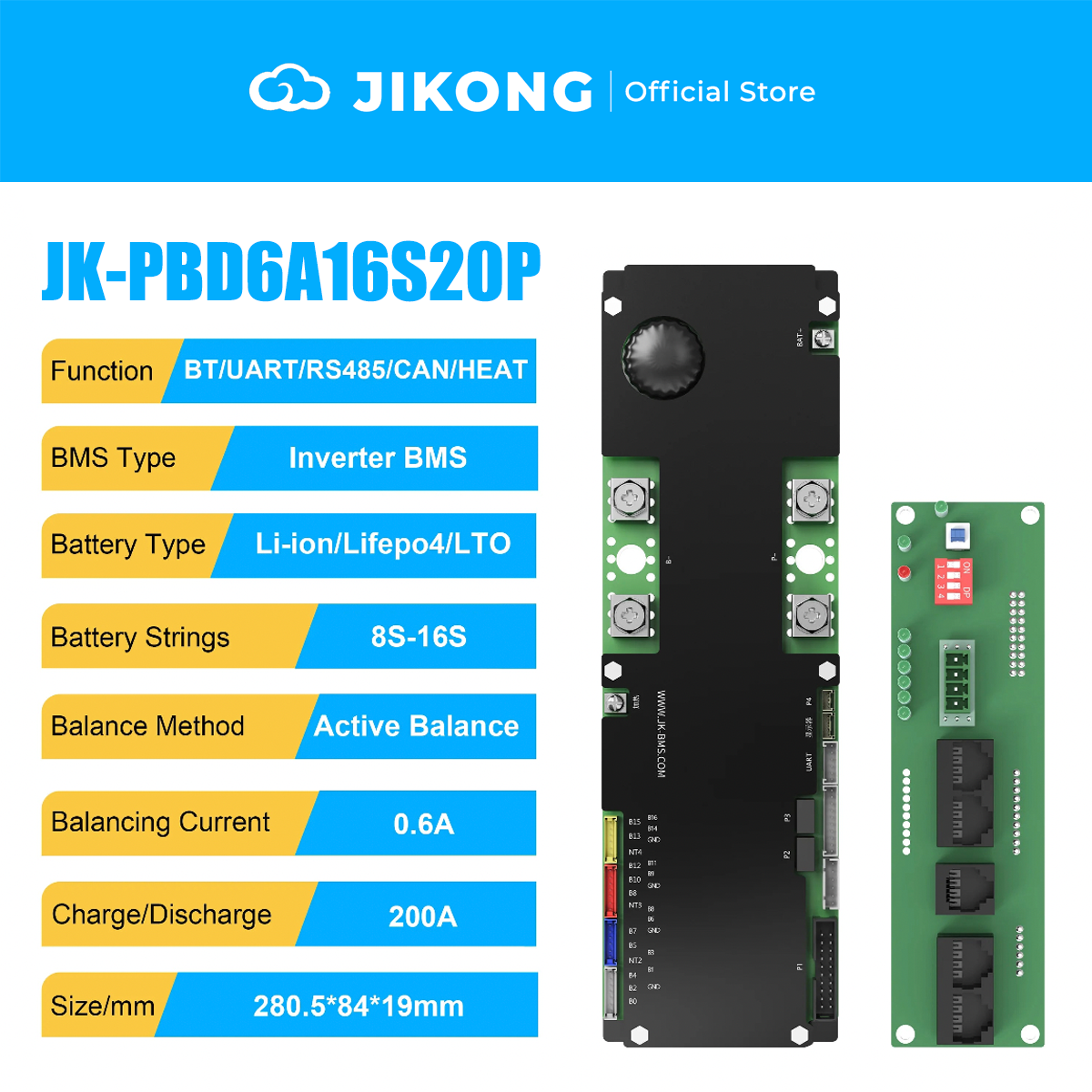

• ③ Interface board
• ④ Adapter
• ⑤ RJ45 Network cable (400mm)
• ⑥ Switch (500mm)
• ⑦ Heating Adapter cable x1 (170mm)
• ⑧ Cells total B+ Cable x1 (500mm)
• ⑨ Sampling line A (900mm)
• ⑩ Sampling line A (900mm)
• ⑪ Sampling line B (900mm)
• ⑫ Sampling line C (900mm)
• ⑬ Adapter cable A (300mm)
• ⑭ Adapter cable B (300mm)
• ⑮ Adapter cable C (300mm)

Note: Battery cells and other accessories are not included.
